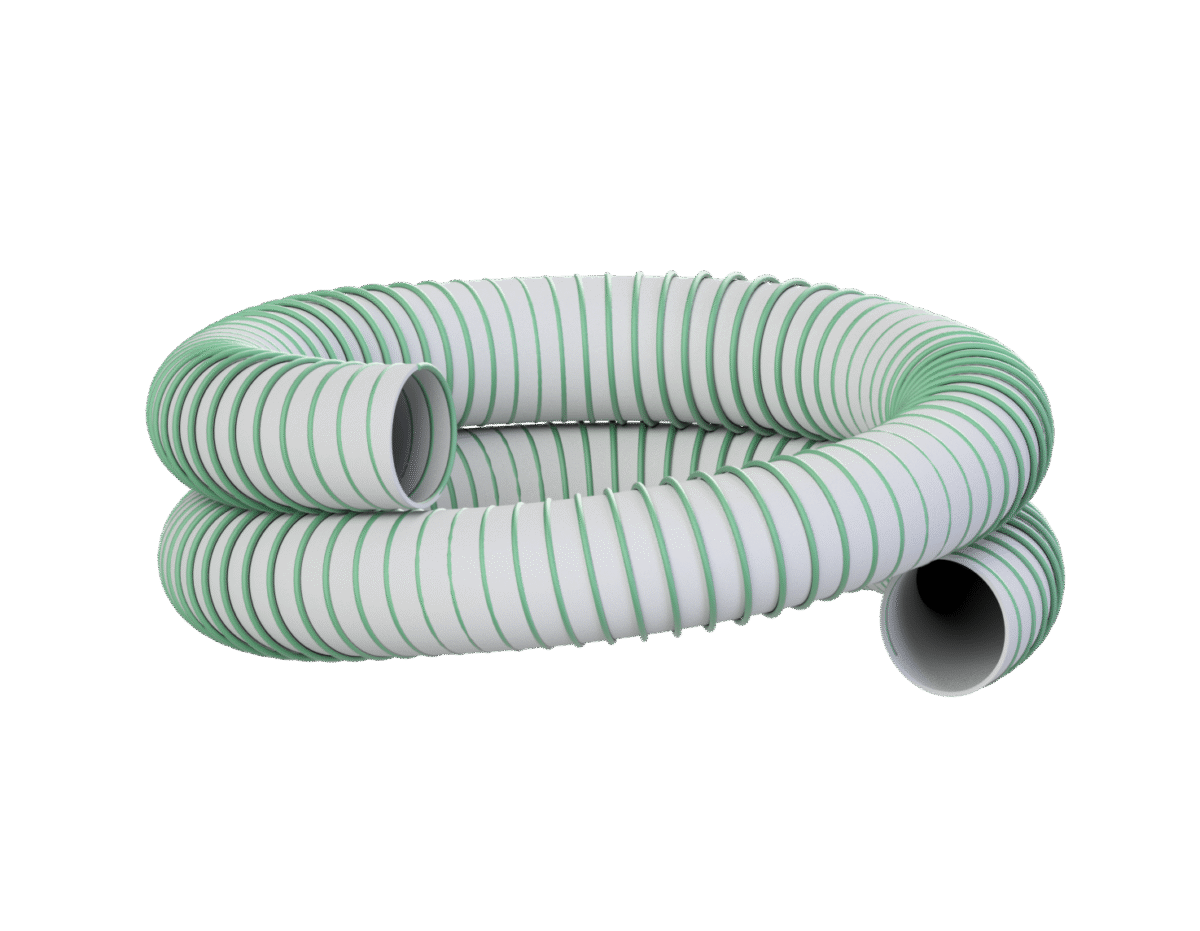

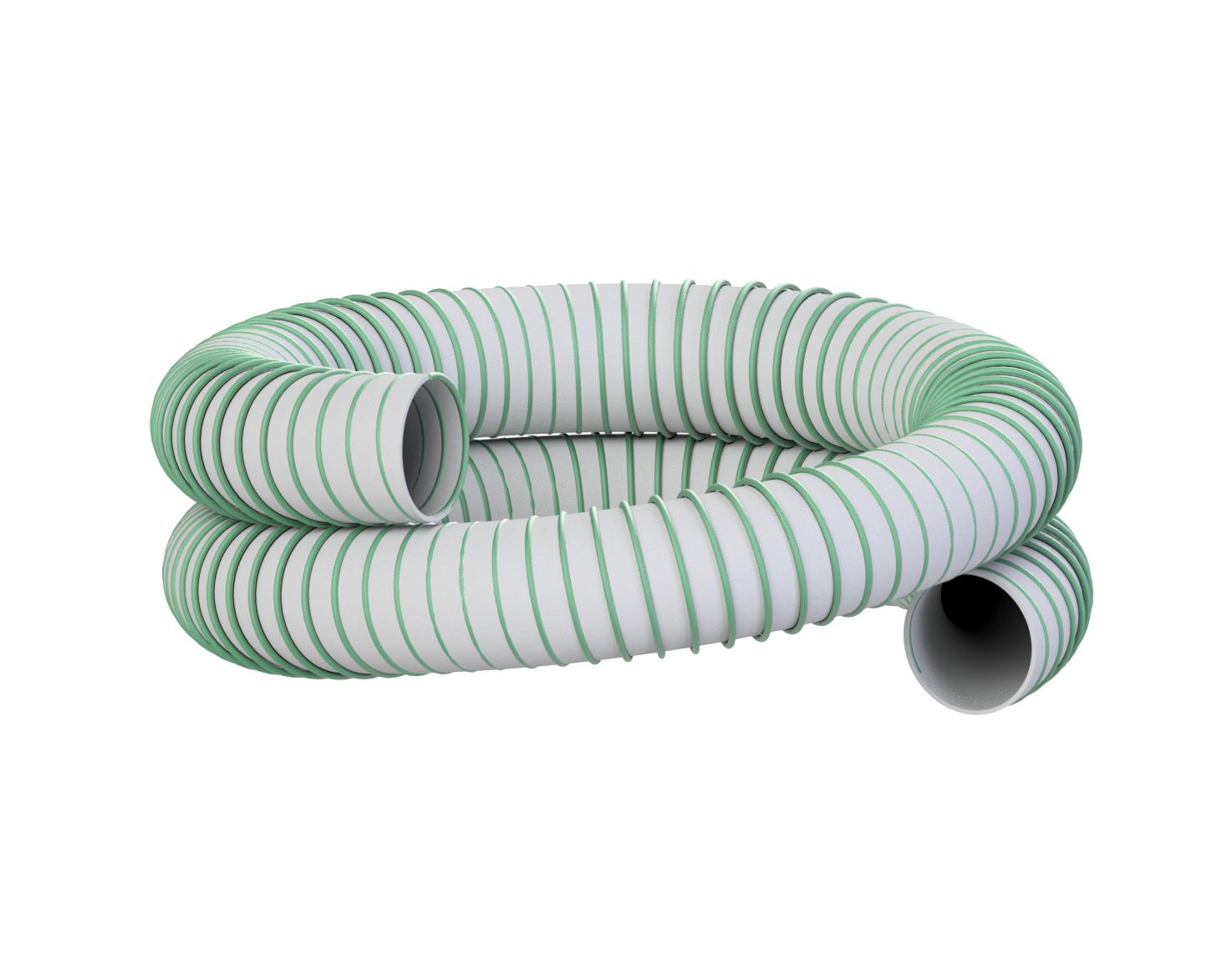

ROV Dredger Hoses
We have in stock Suction/Exhaust hoses for several size ROV Dredgers. We have as standard
4, 6, 8, and 10” Hoses in stock at Killingøy Offshorebase. The Arizona Superelastic hose is well
proven hose, that Saga Subsea have used over a decade. Smaller dimensions for Super Zipjet
pumps are also available upon request.
Technical Specifications
| General Technical Data: | |
| Standard Dimension: | Ø: 4, 6, 8, and 10 inch |
| Product Range: | 1 inch to 12 inch (all dimensions can be delivered upon request) |
| Weight: | 4 inch: 2,7 kg/meter 6 inch: 5 kg/meter 8 inch: 9,5 kg/meter 10 inch: 13,5 kg/meter |
| Inner Diameter: | 4 inch: 101,6 mm 6 inch: 152,4 mm 8 inch: 203,2 mm 10 inch: 254 mm |
| Outer Diameter: | 4 inch: 116,2 mm 6 inch: 170,4 mm 8 inch: 229 mm 10 inch: 283 mm |
| Bend Radius: | 4 inch: 400 mm 6 inch: 610 mm 8 inch: 800 mm 10 inch: 1000 mm |
| Vacuum: | 9 m/H₂O |
| Pressure Range: | 4 inch: 9 Bar 6 inch: 6 Bar 8 inch: 4,5 Bar 10 inch: 4,5 Bar |
| Length: | Delivered in requested length. Standard lengths up to 50 meters. |
