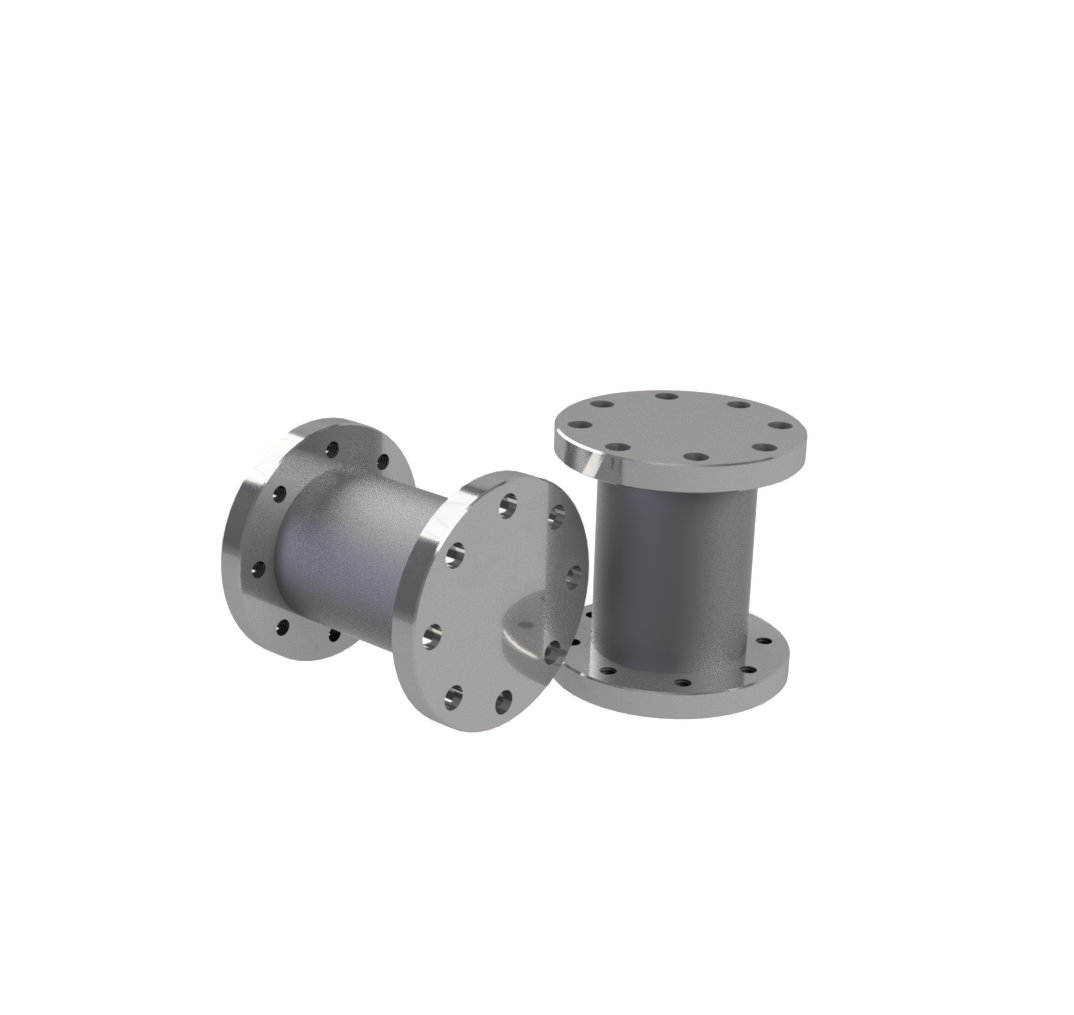

ROV Flexi Joint

The Flexi Joint is used as a flexible joint between the ROV handle/fishtail and for example an
ROV tool. This to avoid damaging the tool or the ROV manipulator. The flexible joint gives you
an indication on forces applied and misalignment without applying all force directly to the
tool itself or to the manipulator.

Technical Specifications
Material: AISI 316L Stainless Steel
Weight in Air: 0,6 kg
Height: 74 mm
Width: Ø: 70 mm OD
Flange 1: Threaded M6 × 8
Flange 2: Through holes for M6 × 4/8
