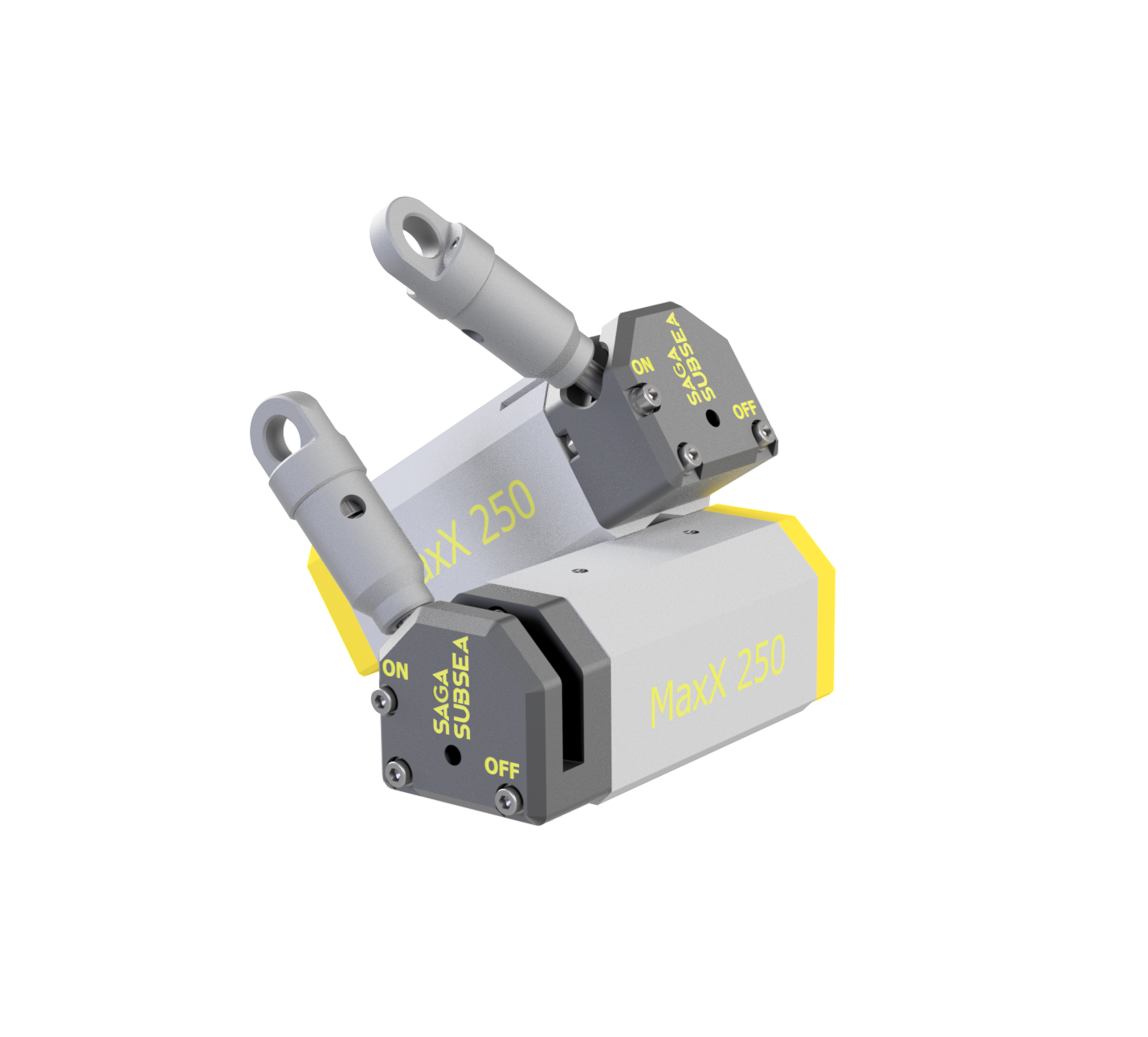

ROV Operable Magnet
The ROV Operable Magnet is designed for attaching tooling to magnetic surfaces. These are
frequently used on Drilling Tools and also on saws etc.
We can also deliver them added to a ROV Graber Bar for use as a grabbing point for ROV on
structures where this is not present.
The magnets are modified so that they can be engaged and disengaged by a lever using ROV
Manipulator. They are fitted with a lubrication point for filling internally with grease. This to
prevent water ingress.
Technical Specifications
| Body Material: | Stainless Steel and Aluminium |
| Weight in Air: | 6 kg |
| Height: | 80 mm |
| Length: | 210 mm |
| Width (Incl. Handle): | 180 mm |
| Width (Body): | 80 mm |
| Lubrication Point: | Stainless Steel nipple for grease pump |
