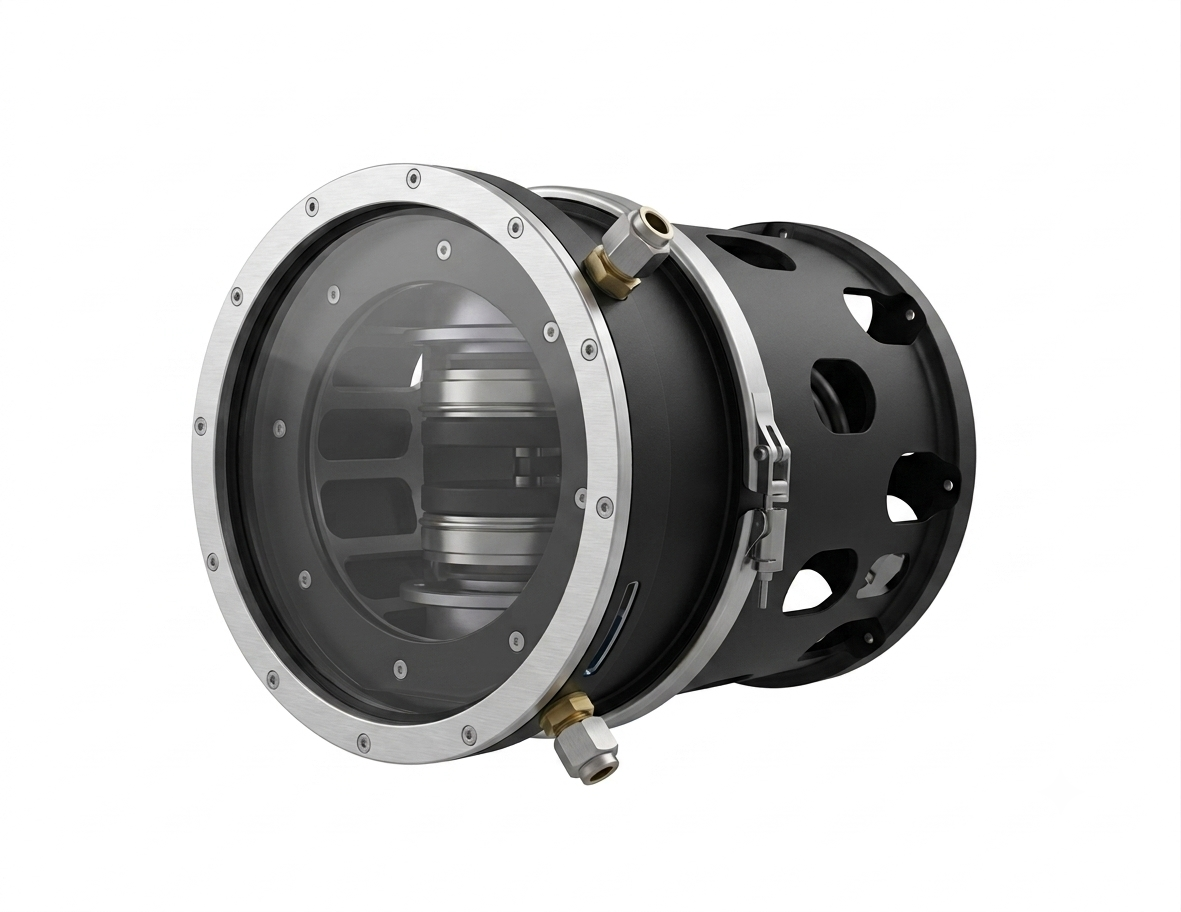

Saga Compensators
The Saga Compensator is suitable for compesating subsea hydraulic systems, as well as reservoir for oil and other fluids on subsea systems. The compensators comes in two sizes: 0,9l and 15,2l and can be customised to suite your needs. Versions with both top- and side-ports is available.
Technical Specifications
The Schilling Robotics Atlas manipulator has been designed to lift heavy loads, while being lightweight and easy to control.
With seven degrees of freedom, a high lift capacity (250kg or 550lb at full extension), and a depth rating of 6,500msw, the ATLAS gives operators the freedom and strength to perform a wider range of heavy-duty jobs in harsh subsea environments.
| Depth Rating | 6 500 msw |
| Max hydraulic pressure | 206 bar |
| Flow Reqirement | 5,7–19 lpm |
| Hydraulic Fluid | Tellus 22 or equal |
| Weight in Air / Water | 73 / 50 kg |
| Four-Finger Intermeshing Gripper | 11.2-in (284 mm) |
| Maximum Lifting Capacity (Nominal) | 500 kg |
| Maximum Lifting Capacity Full Extended | 250 kg |
| Reach | 1,675 m |
| Grip Force (Nominal) | 4,448 N |
| Wrist Torque (Nominal) | 205 Nm |
| Wrist Rotate (Continuous) | 6-35 rpm |
