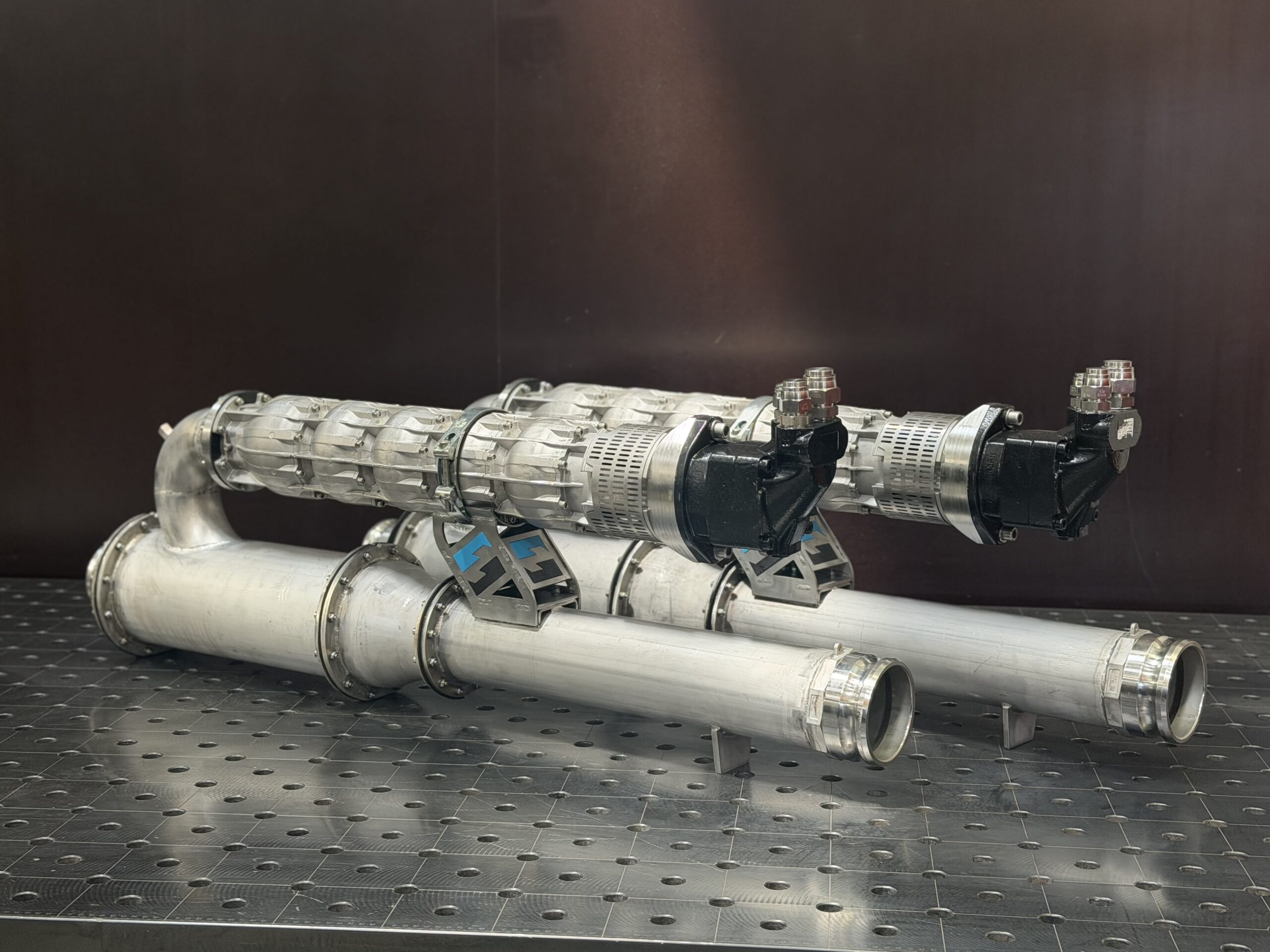

Saga Subsea 4” ROV Dredger

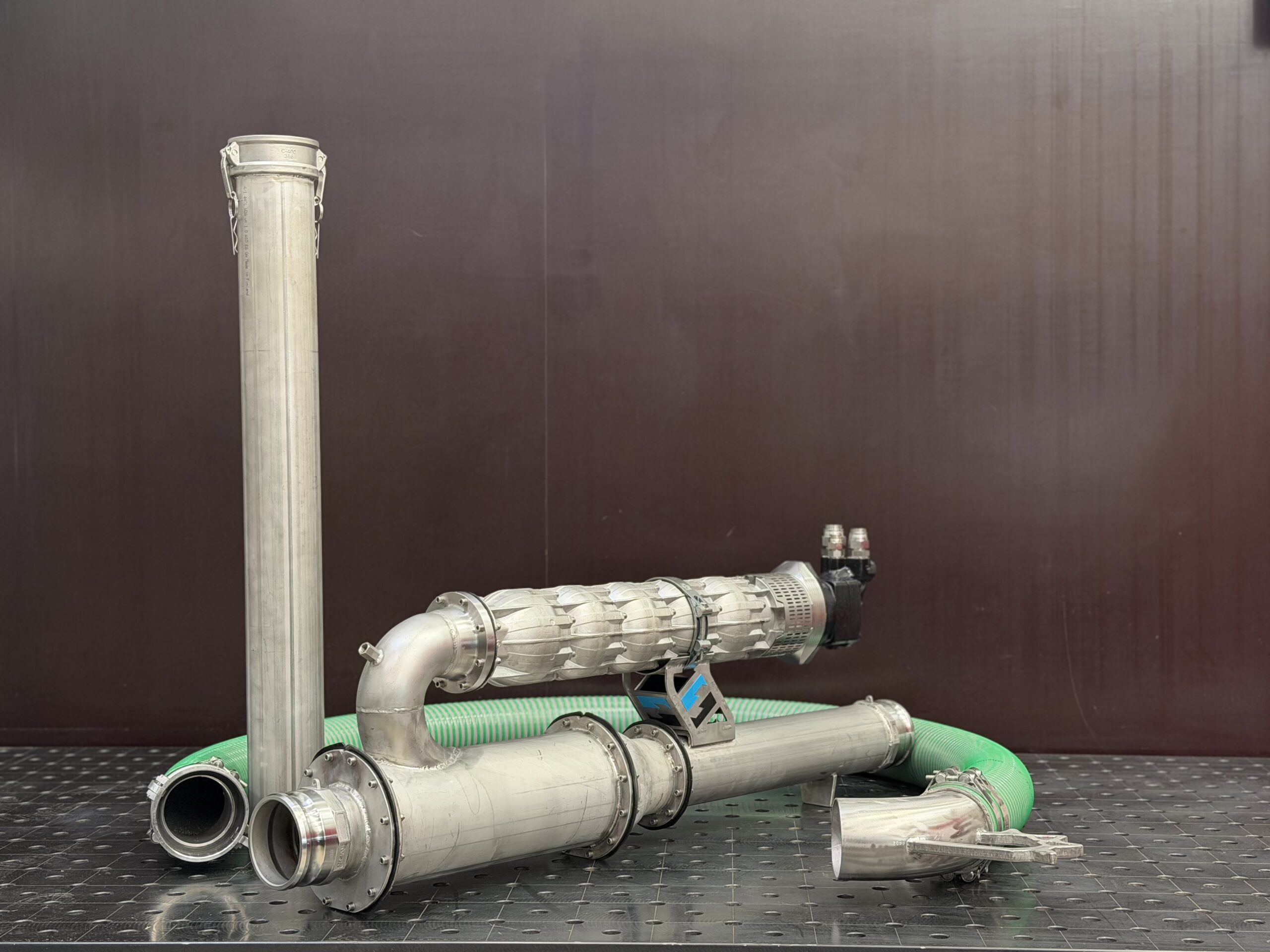

The Saga 4” ROV Dredger is delivered as a complete kit including 5meter length hydraulic
hoses. 3meter suction hose with nozzle, 1meter exhaust, 4” Cam-Lock connections on
suction and exhaust and hose clamps. If any other items or lengths on suction or exhaust, we
can deliver all upon request.
Technical Specifications
|
General Technical Data: |
|
|
Dimension: (LxWxH) |
1270 x 210 x 470 mm |
|
Weight in air: |
65 kg |
|
Weight in water: |
56 kg |
|
Conduit size: |
100 mm |
|
Hydraulic Requirements |
|
|
Max working pressure: |
200 bar |
|
Flow rate: |
30-60 l/min |
|
Pressure port: |
JIC 12 |
|
Return port: |
JIC 16 |
|
Drain port: |
JIC 8 |
|
Oil type: |
Tellus S22 (Standard, not restricted to) |
|
Max theoretical rock size: |
90 mm |
|
Flow Capacity Data |
|
|
Flow rate exhaust (Water): |
240 m3/h (4 000 lpm) |
|
Removal Capacity: |
30 m3/h (Depending on operational handeling) |
|
Materials: |
Conduit, pump and nozzle: AISI 316L. Motor: Coated Cast Steel |
|
Note: |
Shipment also includes 3meter suction hose, with dimension 4inch. |
