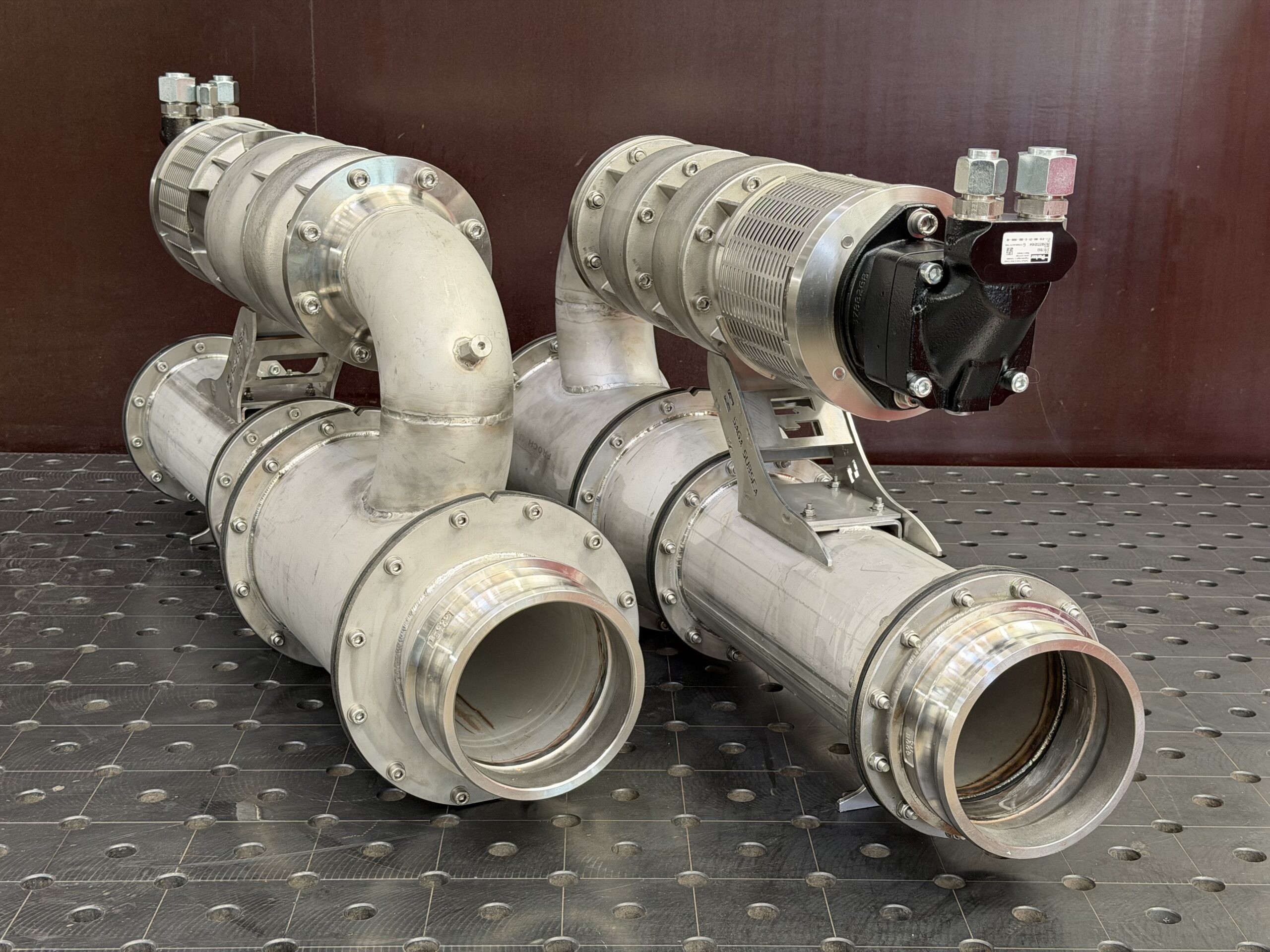

Saga Subsea 6” ROV Dredger

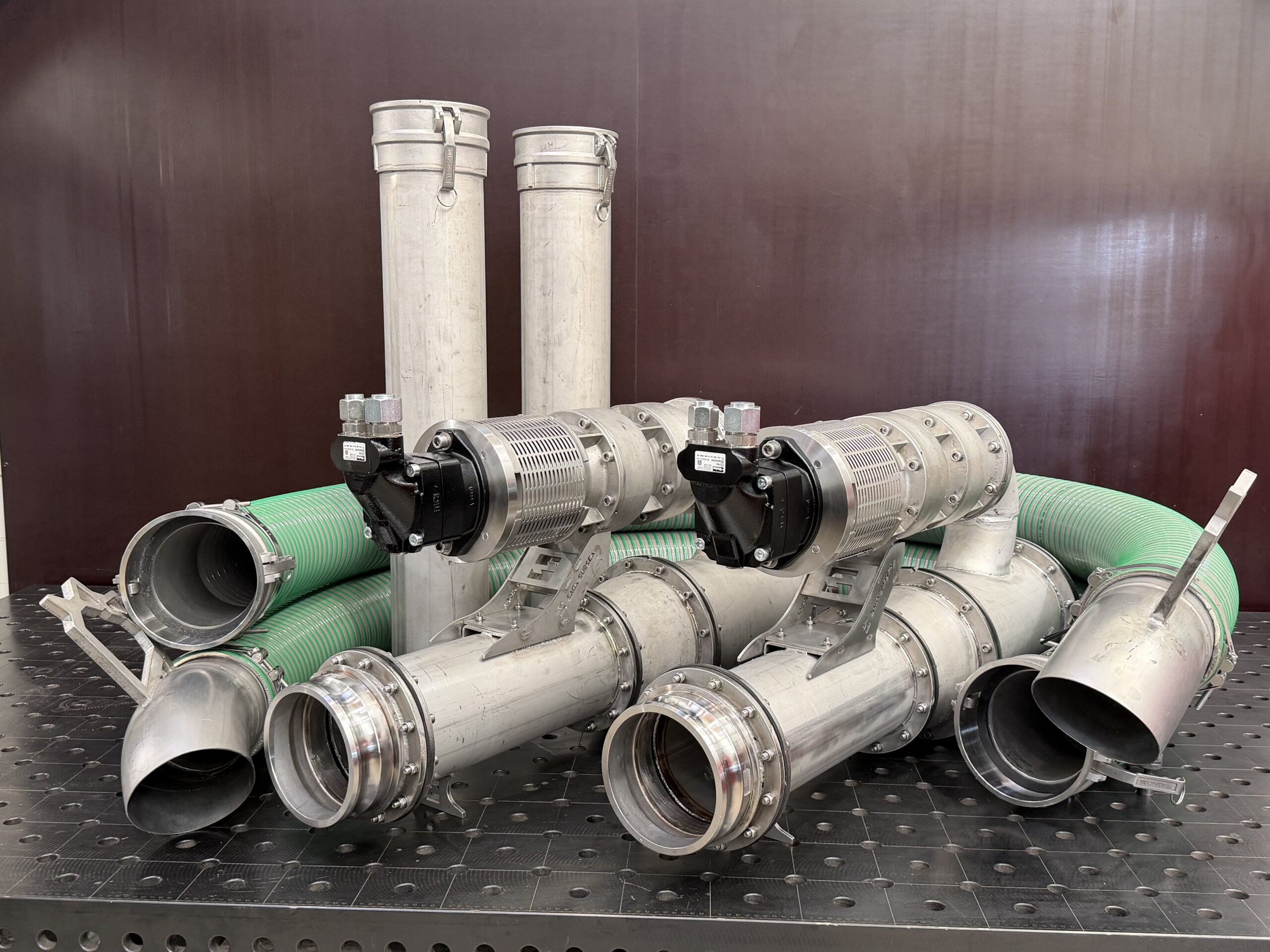

The Saga 6” ROV Dredger is delivered as a complete kit including 5meter length hydraulic
hoses. 3meter suction hose with nozzle, 1meter exhaust, 4” Cam-Lock connections on
suction/exhaust and hose clamps. If any other items or lengths on suction or exhaust, we can
deliver all upon request.
Technical Specifications
|
Dimension: (LxWxH) |
1167 x 270 x 521 mm |
|
Weight in air: |
93 kg |
|
Weight in water: |
79 kg |
|
Conduit size: |
152 mm |
|
Hydraulic Requirements |
|
|
Max working pressure: |
200 bar |
|
Flow rate: |
50 – 60 l/min |
|
Pressure port: |
JIC 12 |
|
Return port: |
JIC 16 |
|
Drain port: |
JIC 8 |
|
Oil type: |
Tellus S22 |
|
Max theoretical rock size: |
140 mm |
|
Flow Capacity Data |
(Depending on operational handeling) |
|
Throughput 90% rock |
28 m3/h |
|
Flow rate exhaust (Water): |
450 m3/h (7 500 lpm) |
|
Throughput 90% sand |
47 m3/h |
|
Throughput 10% solids |
65 m3/h |
|
Materials: |
Conduit, pump and nozzle: AISI 316L. Motor: Coated Cast Steel |
|
Note: |
Shipment also includes 3meter suction hose, with dimension 6inch. |
