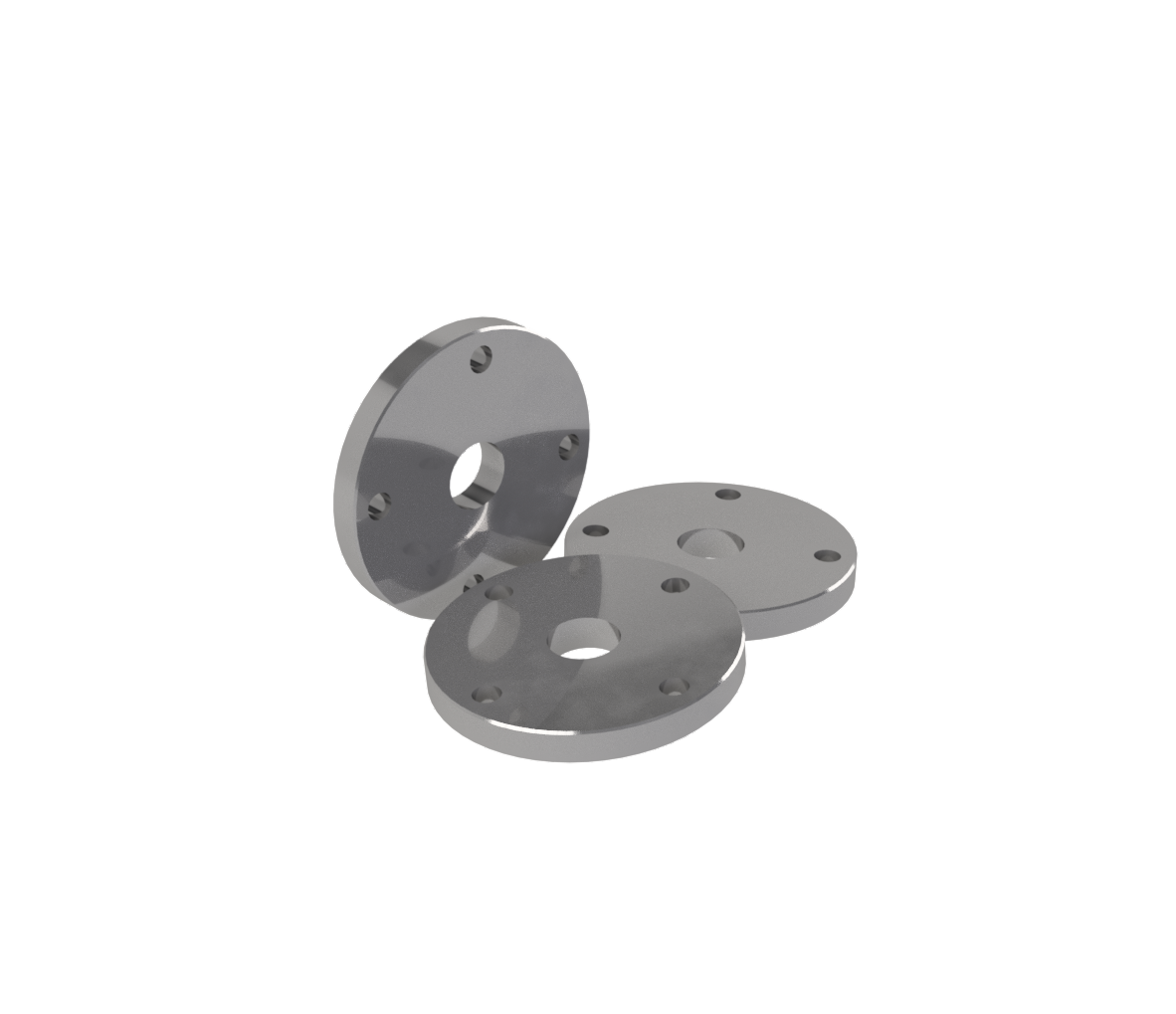

Saga Subsea Fishtail Flange
The Fishtail Flange can be welded on to the fishtail as a connection point towards a Flexi
Joint. It can also be welded on the Tool side for same purpose. Connecting the Flexi Joint as a
security between the ROV Manipulator and the Tool you are operating.
Technical Specifications
| Material: | AISI 316L Stainless Steel |
| Weight in Air: | 0,2 kg |
| Height: | 8 mm |
| Width: | Ø: 70 mm OD |
| Hole Circle: | Drilled holes for M6 bolts × 8 |
