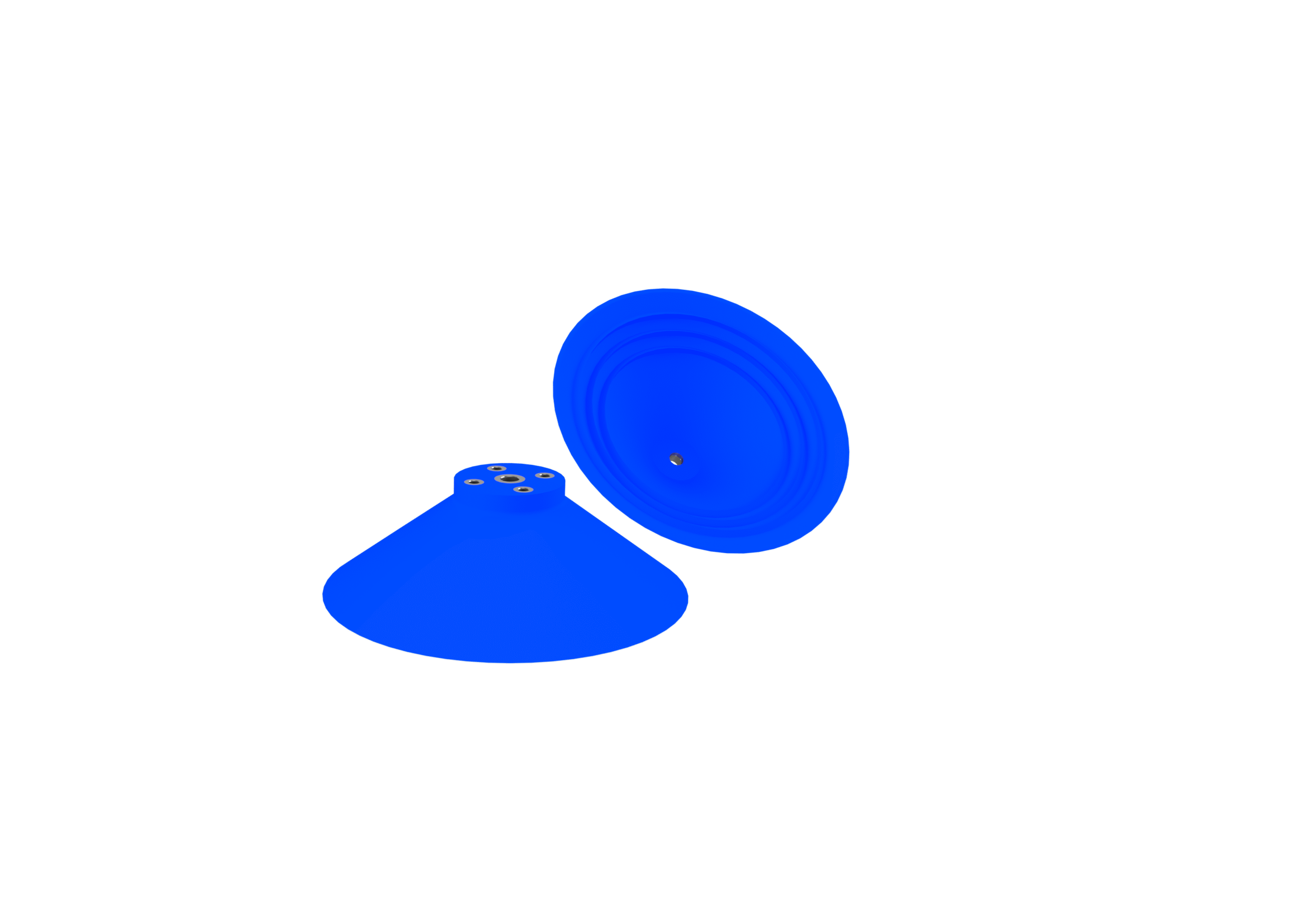

Saga Subsea Ø300 Suction Cup
The Ø300mm Saga Subsea Suction Cup allow flexible placement and
secure anchoring on subsea structures in all sorts of materials and on many surface
structures. Can be mounted as alone og several in series for a tool base etc.
Technical Specifications
| Suction Cup Diameter: | 300 mm |
| Interface: | 4 × M10 × 1.5 @ Ø: 61 mm |
| Center Bore: | 3/8 inch BSP |
| Interface Material: | 316L Stainless Steel |
| Suction Cup Material: | PUR |
| Weight in Seawater: | 0,6 kg |
| Weight in Air: | 1,1 kg |
