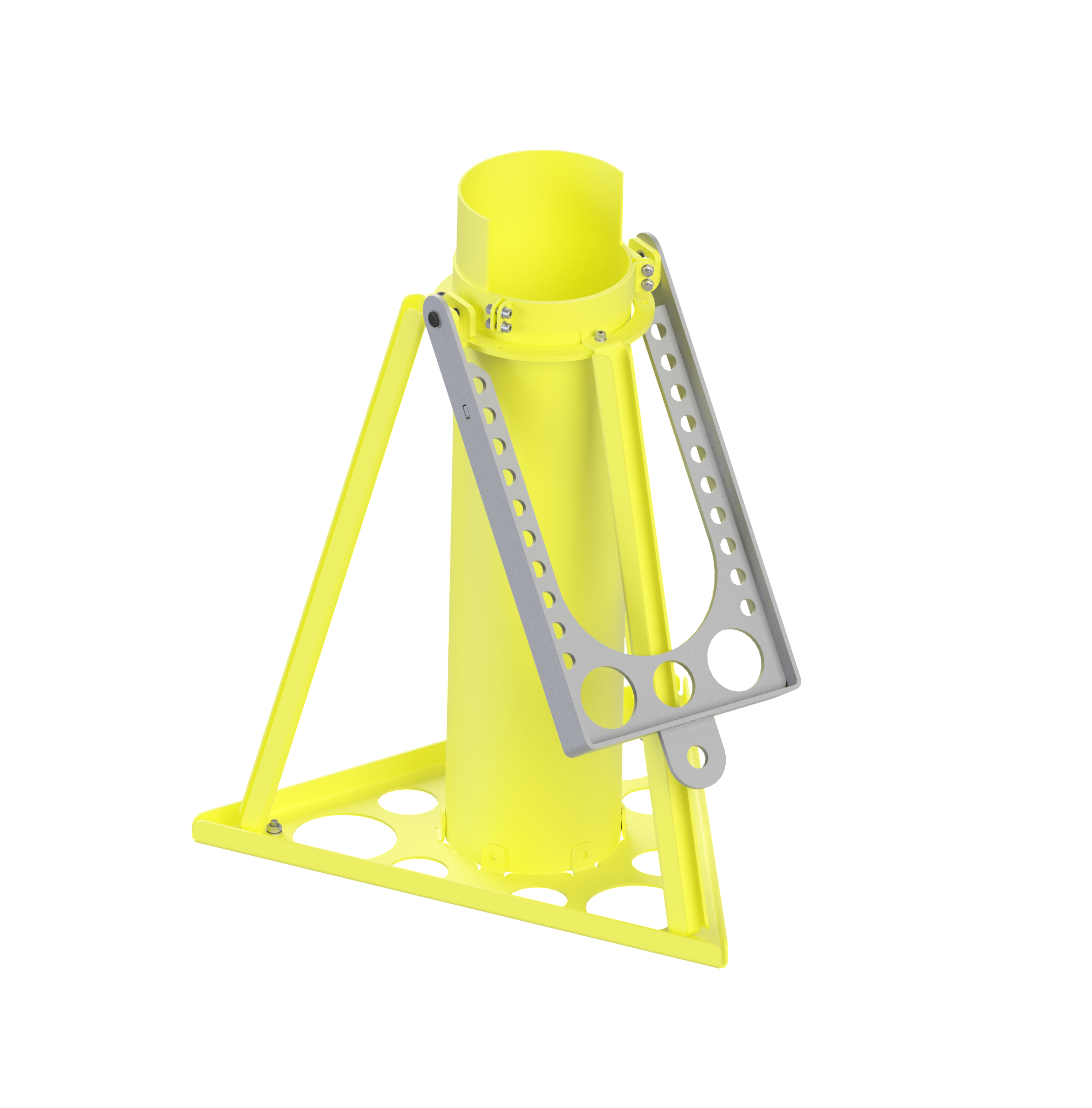

Saga Subsea Transponder Stand (DPTX)
The Saga Subsea DP transponder stand can be installed on seabed either by beeing brought
down with ROV, or you can deploy with vessel Crane or MHS. The TX Stand is delivered with
certified lifting point. Produced in 316-L material and can hold all types and dimension
transponders.
Technical Specifications
| Material: | 316L Stainless Steel |
| Weight in Air: | 25 kg |
| Height: | 920 mm |
| Width: | 700 mm |
| Length: | 800 mm |
| SWL: | 100 kg |
| Lifting Point: | 6,5 Te Shackle |
