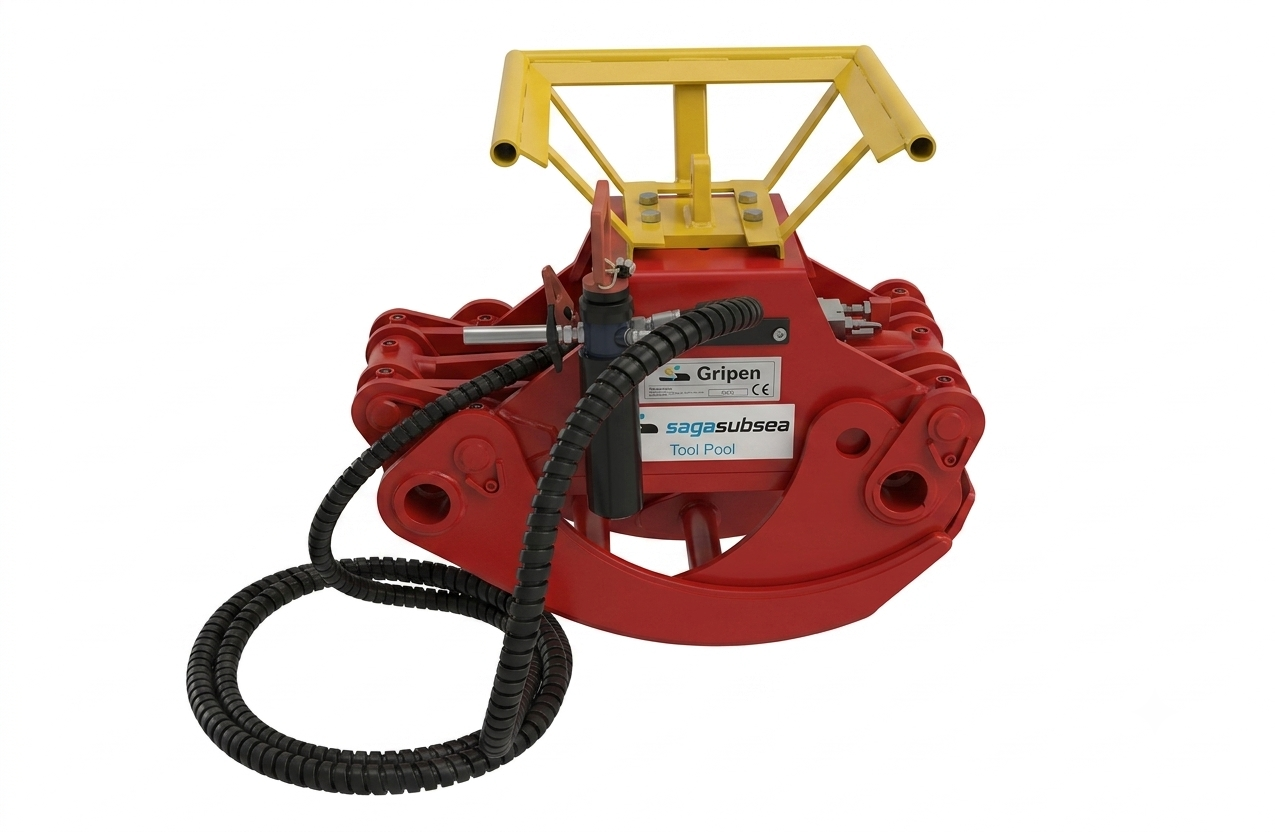

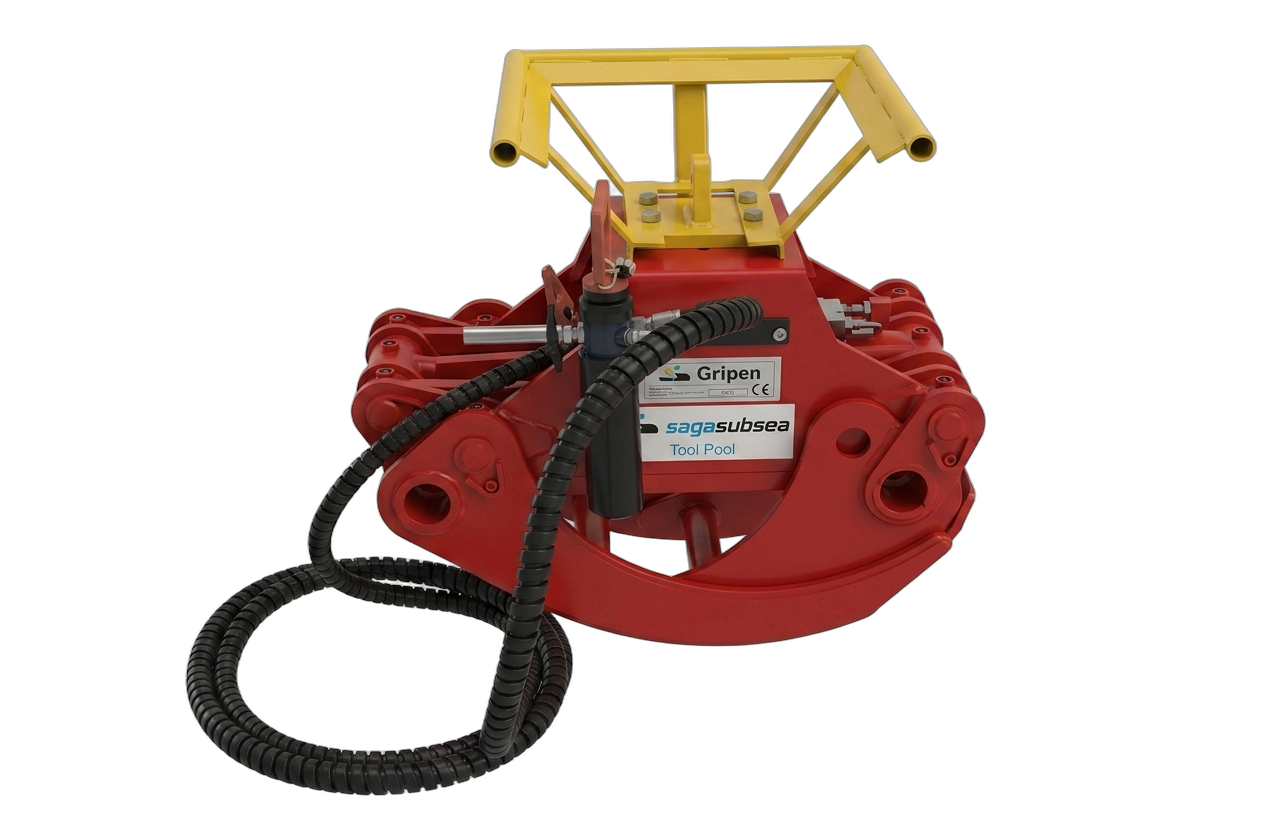

Sagagripen (Dalagripen DGE 35)
Dalagripen DGE 35 is ideal for picking up boulders and other objects on removal jobs etc. With a max opening of 1820mm and a minimum griping diameter of 125mm it has a wide spectre of usage.
Gripping force arms tip: 25,4 kN
Max load: 5000kg
Send request
Alexander Alme Rossebø
Department Manager
Tooling & Project
Technical Specifications
Dalagripen DGE 35 is ideal for picking up boulders and other objects on removal jobs etc. With a max opening of 1820mm and a minimum griping diameter of 125mm it has a wide spectre of usage.
Gripping force arms tip: 25,4 kN
Max load: 5000kg
| Manufacture | Sit Right |
| Model | DGE35 Dalagripen |
| Max working pressure | 250 BAR |
| Gripping force arms tip | 25,4 kN |
| Cylinder force | 146,2 kN |
| Max load | 3100 KG |
| Weight in Air | 275 kg |
| With handle and padeye | 290 KG |
| Lenght (when closed) | 930 mm |
| Height (When closed) | 800 mm |
| Max Opening | 1820 mm |
