Saga Core Samplers

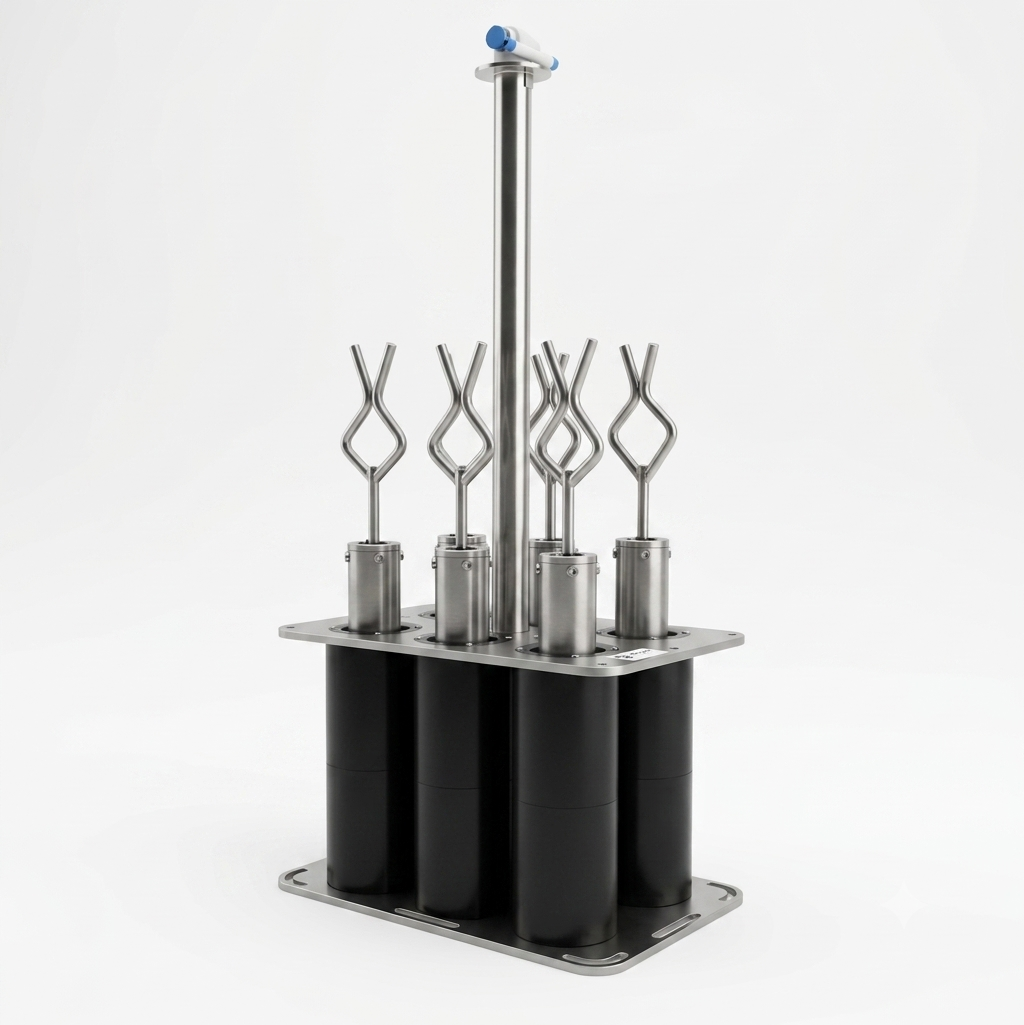

The Saga Core Sampler Kit is designed to hold six core samplers; each fitted with a fish tail-grip.
The holder is delivered with a lifting point and is available with a selection of different options.
Certified for lifting/deployment offshore.
Send request
Alexander Alme Rossebø
Department Manager
Tooling & Project
Technical Specifications
- Robust Design For Harsh Environment
- Corrosion Resistant Materials
- ROV Operated
- Lift Point For Handling
- 230 kg Payload
- Clay & loose sediment
| Dimensions Push Corer KIT | |
| Length | 600 mm |
| Width | 400 mm |
| Height | 1265 mm |
| Weight including 6 Push Corers | |
| In Air | 74 kg |
| In Water | 49 kg |
| Depth Rating | 6000 m |
